||||| TKD ALL PRODUCTS |||||

For AUDIO MIXER,  LIGHTING MIXER, VIDEO MIXER
[ MOTORISED FADER ]

Click on the image to jump to details.
Product name MF-9100 Series
Features Conductive plastic resistor element used (Low slide noise).
Horizontal style control-bar design (Protection against dust).
With touch sense track.
Durable system which adopted the shaft of the high quality.
Travel 100mm
Size 15.5W x 41.6H x 152D
[Under development]

Datasheet are scheduled to be released in November, 2019.
Next information in December, 2019.

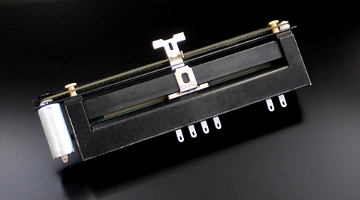

Product name MF-9101PFL
Features With Pre-Fade Listen switch.
Conductive plastic resistor element used (Low slide noise).
Horizontal style control-bar design (Protection against dust).
With touch sense track.
Travel 98mm + 2mm(PFL)
Size 15.5W x 41.6H x 152D

Click on the image to jump to details.
Product name LMH5 Series
Features Direct print resistor element used (Special surface treatment).
Horizontal style control-bar design (Protection against dust).
With touch sense track.
PCB Terminal style.
Travel 100mm, 60mm
Size 13W x 24H x 153.5D (100mm), 13W x 24H x 113.5D (60mm)

Click on the image to jump to details.
Product name LMA5 Series
Features Direct print resistor element used (Special surface treatment).
With touch sense track.
PCB Terminal style.

Travel 100mm, 60mm
Size 16.2W x 17.5H x 152D (100mm), 16.2W x 17.5H x 112D (60mm)

Click on the image to jump to details.
Product name MLA Series
Features Direct print resistor element used (Special surface treatment).
With touch sense track.
PCB Terminal style.

Travel 100mm, 60mm
Size 16.5W x 17H x 151D (100mm), 16.5W x 17H x 111D (60mm)

[ MANUAL FADER ]

Click on the image to jump to details.

Datasheet are scheduled to be released in November, 2019.
Order start on December 1st.

[Control-bar 11mm version is under development]
Next information in December, 2019.
Product name FA-9100-10K
Features Step variable attenuator (no clicks).
Au-plated contact materials.
Horizontal style control-bar design (Protection against dust).
Durable system which adopted the shaft of the high quality.
Travel 100mm
Size 15W x 33.5H x 133D

Click on the image to jump to details.

[Control-bar 11mm version is under development]
Manufacturing sample parts. (October, 2019.)
Next information in December, 2019.

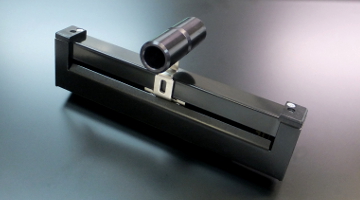

Product name CPA-9000 Series
Features Conductive plastic resistor element used (Low slide noise).
Horizontal style control-bar design (Protection against dust).
Durable system which adopted the shaft of the high quality.
Best touch.
Travel 100mm, 104mm
Size 15W x 33.5H x 133D

Click on the image to jump to details.
Product name CPA-7000 Series
Features Conductive plastic resistor element used (Low slide noise).
Horizontal style control-bar design (Protection against dust).
Durable system which adopted the shaft of the high quality.

Travel 100mm, 104mm
Size 13W x 30H x 133D

Click on the image to jump to details.
Product name LSVH Series
Features Direct print resistor element used (Special surface treatment).
Horizontal style control-bar design (Protection against dust).
PCB Terminal style.

Travel 100mm, 60mm
Size 12.2W x 19.2H x 128D (100mm), 12.2W x 19.2H x 88D (60mm)

Click on the image to jump to details.
Product name LSVA Series
Features Direct print resistor element used (Special surface treatment).
PCB Terminal style.


Travel 100mm, 60mm, 45mm
Size 12.2W x 9.3H x 128D (100mm), 12.2W x 9.3H x 88D (60mm),
12.2W x 9.3H x 73D (45mm)

Click on the image to jump to details.
Product name LCA Series
Features Direct print resistor element used.
PCB terminal style.


Travel 100mm, 60mm, 45mm
Size 16W x 9H x 128D (100mm), 16W x 9H x 88D (60mm),
16W x 10.2H x 73D (45mm)

For DJ MIXER
[ INPUT / CROSS FADER ]

Click on the image to jump to details.

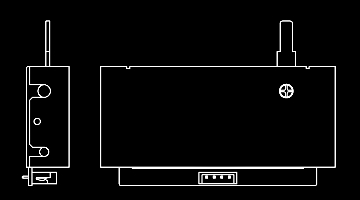

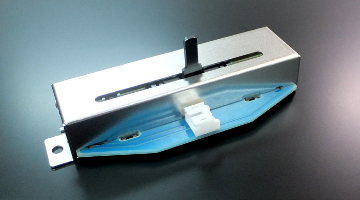

Product name CFX-45L
Features Conductive plastic resistor element used.
Horizontal style control-bar design.
Durable system which adopted the shaft of the high quality.
Connector terminal style.
Travel 45mm
Size 13W x 33H x 78D

For VIDEO MIXER, VARIOUS EQUIPMENTS
[ T-BAR CONTROLLER ]

Click on the image to jump to details.
Product name VP-1000 Series
Features 50mm control-bar
Conductive plastic resistor element used.
Slide switch (at both ends ON) is optional.

Operating degrees 60 degrees
Size 24W x 36H x 75D (Body)

Click on the image to jump to details.
Product name VP-500 Series
Features 20mm control-bar
Conductive plastic resistor element used.
Slide switch (at both ends ON) is optional.

Operating degrees 60 degrees
Size 24W x 36H x 75D (Body)

For VARIOUS AUDIO EQUIPMENTS
[ STEPPED VARIABLE ATTENUATOR ]

Click on the image to jump to details.
Product name P65CS
Features Au-plated contact materials
Metal film resistor used. (non-magnetic material)
41 positions (0dB - Cut off)
Potentiometer circuit
Total resistance 1kohm, 10kohm, 50kohm, 100kohm, 250kohm
Size dia. 45 x **mm

Click on the image to jump to details.
Product name Type-HR23
Features Au-plated contact materials
Metal film resistor used. (non-magnetic material)
31 positions (0dB - Cut off)
Potentiometer circuit
Total resistance 10kohm, 100kohm
Size 23.5mm sqare x **mm

Click on the image to jump to details.
Product name Type-P2500
Features Au-plated contact materials.
Metal film resistor used. (non-magnetic material)
Small size & Light weight
Potentiometer circuit
Total resistance 1kohm, 7kohm, 10kohm, 100kohm
Size 25 x 25 x **mm

Click on the image to jump to details.

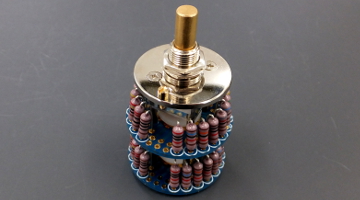

Product name Type-36R
Features Au-plated contact materials.
Metal film resistor used.
Potentiometer circuit
This product which has been wired "DIY ATTENUATOR".
Total resistance 10kohm, 50kohm, 100kohm
Size dia.36 x **mm

Click on the image to jump to details.

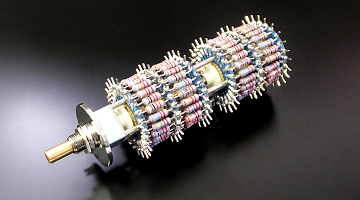

Product name 2LD30RS-100K
Features Au-plated contact materials.
Metal film resistor used.
L-pad circuit
Load resistance: 100kohm
Imperdance 100kohm(2dB-60dB position) / 50kohm(0dB position)
Size dia.41 x 106mm

[ VARIABLE ATTENUATOR ]

Click on the image to jump to details.
Product name CP2500 Series
Features Conductive plastic resistor element used
Ladder circuit
Operating angle: 300 degrees
Small size & Light weight
Total resistance 5kohm, 10kohm, 50kohm, 100kohm
Size 25 x 25 x **mm (Body)

Click on the image to jump to details.
Product name CP2511 Series
Features Conductive plastic resistor element used
Ladder circuit
Operating angle: 315 degrees
Small size & Light weight
Total resistance 5kohm, 10kohm, 50kohm, 100kohm
Size 25 x 25 x **mm (Body)

Click on the image to jump to details.
Product name 2CP2531WS Series
Features Conductive plastic resistor element used
Ladder circuit
Operating angle: 300 degrees + 15 degrees (switch)
With snap action switch
Total resistance 10kohm, 50kohm, 100kohm
Size 25 x 25 x **mm (Body)

Click on the image to jump to details.
Product name CP-600 Series
Features Conductive plastic resistor element used
Ladder circuit
Operating angle: 300 degrees
Small size & Light weight
Total resistance 5kohm, 10kohm, 50kohm, 100kohm
Size 16 x 16 x **mm

[ ROTARY SENSOR, VARIABLE POTENTIOMETER ]

Click on the image to jump to details.
Product name CP2500 Series
Features Conductive plastic resistor element used
Output Law Taper-A, Taper-B, Taper-C (Potentiometer circuit)
Total resistance 5kohm, 10kohm, 50kohm, 100kohm
Operating angle 300 degrees
Size 25 x 25 x **mm (Body)

Click on the image to jump to details.
Product name CP600 Series
Features Conductive plastic resistor element used
Output Law Taper-A, Taper-B, Taper-C (Potentiometer circuit)
Total resistance 5kohm, 10kohm, 50kohm, 100kohm
Operating angle 300 degrees
Size 16 x 16 x **mm

[ ROTALY SWITCH ]
[Under development]
Prototype. (October, 2019.)
Next information in December, 2019.
Product name RS25G Series
Features Au-plated contacts, Connector terminal style
Number of Wafers 1
Number of Poles 2 (Standerd)
Number of contact Per Poles 3~6
Size 25 x 25 x 19.4mm

Click on the image to jump to details.
Product name RR16G Series
Features Au-plated contacts
Number of Wafers 5 (Max)
Number of Poles 10 (Max)
Number of contact Per Poles 23 (Max)
Size 20 x 22.5 x **mm

Click on the image to jump to details.

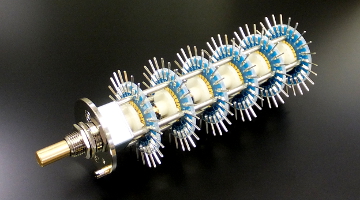

Product name RR30G Series
Features Au-plated contacts
Number of Wafers 6 (Max)
Number of Poles 6 (Max)
Number of contact Per Poles 23
Size φ30 x **mm


GENERAL ELECTRONIC COMPONENTS
[ AXIAL TYPE RESISTOR ]

Click on the image to jump to details.
Product name RN Series
Features Precision Metal Film Resistor
Molding insulation
Excellent stability, super-highly accurate products
Resistance tolerance ±0.1%, ±0.25%, ±0.5%, ±1%
Absolute T.C.R. ±5, ±10, ±25, ±50 [ppm/degreesC]
Power Rating 0.1W, 0.125W, 0.25W, 0.5W, 0.75W, 1.5W

Click on the image to jump to details.
Product name SRN Series
Features Super precision Metal Film Resistor
Molding insulation
Excellent stability, super-highly accurate products
Resistance tolerance ±0.01%, ±0.0125%, ±0.05%
Absolute T.C.R. ±5, ±10 [ppm/degreesC]
Power Rating 0.1W, 0.125W, 0.25W, 0.5W

Click on the image to jump to details.
Product name RN14 Series
Features Precision Metal Film Resistor
Coating insulation
Small size, high-precision products
Resistance tolerance ±0.1%, ±0.25%, ±0.5%, ±1%
Absolute T.C.R. ±5, ±10, ±25, ±50 [ppm/degreesC]
Power Rating 0.25W, 0.5W

Click on the image to jump to details.
Product name PP14 Series
Features Precision Metal Film Resistor
Coating insulation
Small size, high-precision products
Resistance tolerance ±0.1%, ±0.25%
Absolute T.C.R. ±10, ±25 [ppm/degreesC]
Power Rating 0.25W, 0.5W

Click on the image to jump to details.
Product name CM Series
Features Metal Film Resistor
Coating insulation
General-purpose products
Resistance tolerance ±0.5%, ±1%
Absolute T.C.R. ±50, ±100 [ppm/degreesC]
Power Rating  0.125W, 0.25W, 0.5W, 1W, 2W

Click on the image to jump to details.

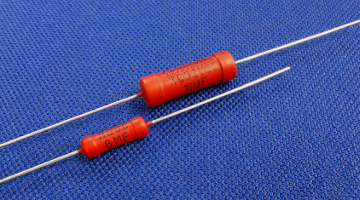

Product name RG Series
Features Metal graze resistor
Coating insulation
High range and High voltage
Resistance tolerance ±1%, ±2%, ±5%
Absolute T.C.R. ±100 [ppm/degreesC]
Power Rating 0.5W, 0.8W, 1.6W, 2.5W, 4W


FADER BOX, ATTENUATOR BOX
[ FADER BOX ]
[Under development]
Next information in December, 2019.
Product name FA-9101BOX
Features This fader box is equipped with manual fader "FA-9101".
RCA connector
Potentiometer circuit

Total resistance 10kohm
Size 180(D) x 50(W) x 44(H)

[ ATTENUATOR BOX ]
[Under development]
Next information in December, 2019.
Product name ATB-36R-2
Features This attenuator box is equipped with attenuator "Type 36R".
RCA connector
Potentiometer circuit

Total resistance 10kohm
Size 180(D) x 50(W) x 44(H)
[Under development]
Next information in December, 2019.
Product name ATB-2LD30RS
Features This attenuator box is equipped with attenuator "2LD30RS".
RCA connector
L-pad circuit
Load resistance: 100kohm
Imperdance 100kohm(2dB-60dB position) / 50kohm(0dB position)
Size 180(D) x 50(W) x 44(H)


ASSMBLY KIT, ACCESSORIES
[ ASSMBLY KIT ]

Click on the image to jump to details.
Product name DIY Attenuator
Features Let's make an attenuator !
Resistor assembly kit.


Total resistance 10kohm, 50kohm, 100kohm
Size dia.36 x **mm

Click on the image to jump to details.
Product name DIY DECADE BOX
Features  Resistor assembly kit.



Total resistance 11.11kohm
(1ohm x10, 10ohm x10, 100ohm x10, 1kohm x10)
Size 60W x 30H x 180D

[ KNOB for FADER ]

Click on the image to jump to details.
Product name CP-1
Features Exclusive use of the "TKD PROFADER"

Standerd Type color Red, Black, White, Ivory, Orange, Yellow, Green, Blue,
Sky blue, Grey, Brown
Conductive Type color Gold, Silver, Bronze
Size 16W x 9H x 25D

Click on the image to jump to details.
Product name CP-2
Features Exclusive use of the "TKD PROFADER"

Standerd Type color Red, Black, White, Ivory, Orange, Yellow, Green, Blue,
Sky blue, Grey, Brown
Conductive Type color Gold, Silver, Bronze
Size 11W x 9H x 25D


PRODUCT STATUS >>
