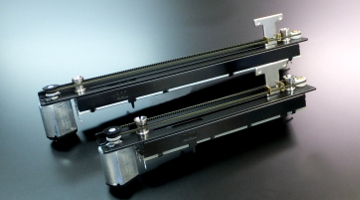

| MOTORIZED CONTROL FADER |
 |
MTX Series |
| Direct print resistor element used (Special surface treatment). Short length motor. Vertical style control-bar design. PCB Terminal style. All models include a touch sense track. |
| Last update: 2022.11.01. | [Electrical-spec] | [Mechanical-spec] | [Note] | [Dimensions] | [Model-number] | EU-RoHS |
| Information |
| UNDER DEVELOPMENT Now accepting small sample orders. |
| Electrical specifications | MTX Series | |
| Products | MTX-1100-B*-M7V | MTX-6100-B*-M7V |
| Number of circuits Type of output laws |
1 Linear taper |
|
| Circuit method | Potentiometer circuit | |
| Total resistance (1-3) | 10kohm, 5kohm | |
| Total resistance tolerance | ±20% | |
| Linearity | ±5% (Linear taper) | |
| Residual resistance (1-2), (2-3) | 50ohm or less (Linear taper) | |
| Touch sense track contact resistance (T-Control-bar) |
30ohm or less |
|
| Voltage proof | 1 Min. at AC100V | |
| Insulation resistance | 50Mohm or more at DC100V | |
| Max rating | DC20V (0.1W) | |
| Sliding noise level | 47mV or less (by JIS C 6443) | |
| Sliding life | 100,000 Cycles Min. (18cycles/min, Sliding noise level: Less than 100mV) | |
| Drive motor data |
DC7V Iron cored motor : Input voltage: DC3V - 7V
(Nominal DC7V), Stall current: 0.68A or less [FF-030PK-09210 : MABUCHI MOTOR Co., Ltd.] |
|
| Mechanical specifications | MTX-1100 Series | MTX-6100 Series |
| Travel (Stroke) length | 100mm ±0.5mm | 60mm ±0.5mm |
| Operating force | 0.1 to 0.4N | |
| Strength Nut-Attached | 100Ncm | |
| Attached parts | M3 screw (Length: Panel thickness + 3~5mm) | |
| Stopper strength | 30N | |
| Push-pull strength | 30N | |
| Alignment to the center | ±0.5mm (State not to pressure control-bar, Measurement position: Mounting surface) | |
| General specifications | MTX Series |
| Temperature range | 0 to +50 degrees C (Operating), -10 to +60 degrees C (Storage) |
| Relative humidity | 80%RH (No condensation) |
| Note |
| * Solder heat resistance: 350deg C max, 5sec max, 2 times. (Manual
soldering only) * Please take care during soldering that the smoke from the solder does not flow inside a fader. * If the flux sticks to a resistor board, it may cause a trouble with the fader. |
| * Move to one end in Control-bar on the occasion of knob wearing, and can break into it slowly. |
| * It is highly recommended that the fault tolerant system is to be set up in the big situation like the live broadcast. |
| *
This product is designed on the assumption of the horizontal use. * The enough operational testing is highly recommended for the slant or the vertical use to prevent the unexpected operation. |
| * Replacing it from other brands tests it enough, and please consider. |

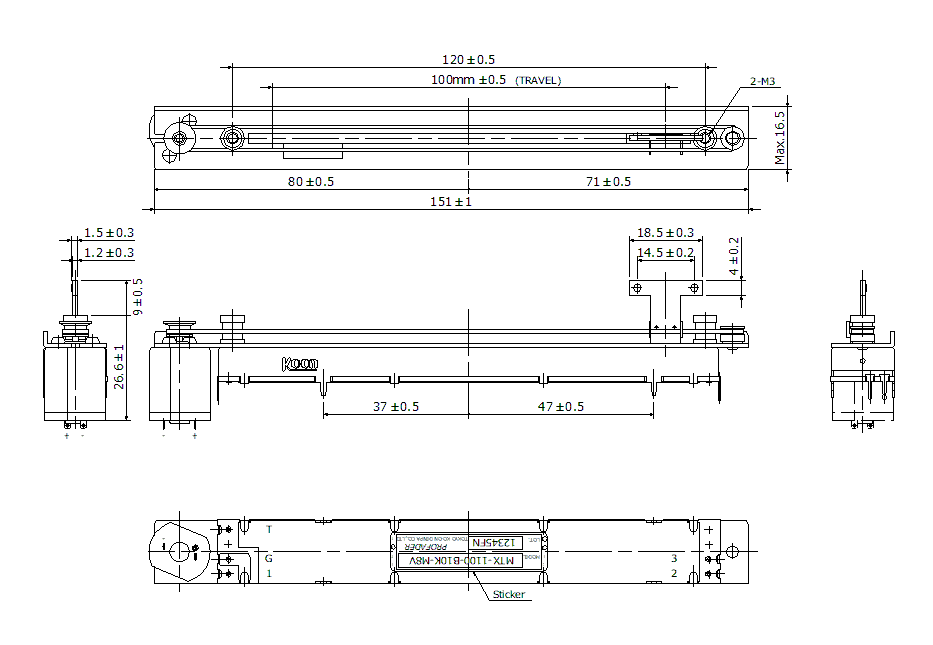

| Dimensions - MTX-1100-*-M7V |
 |

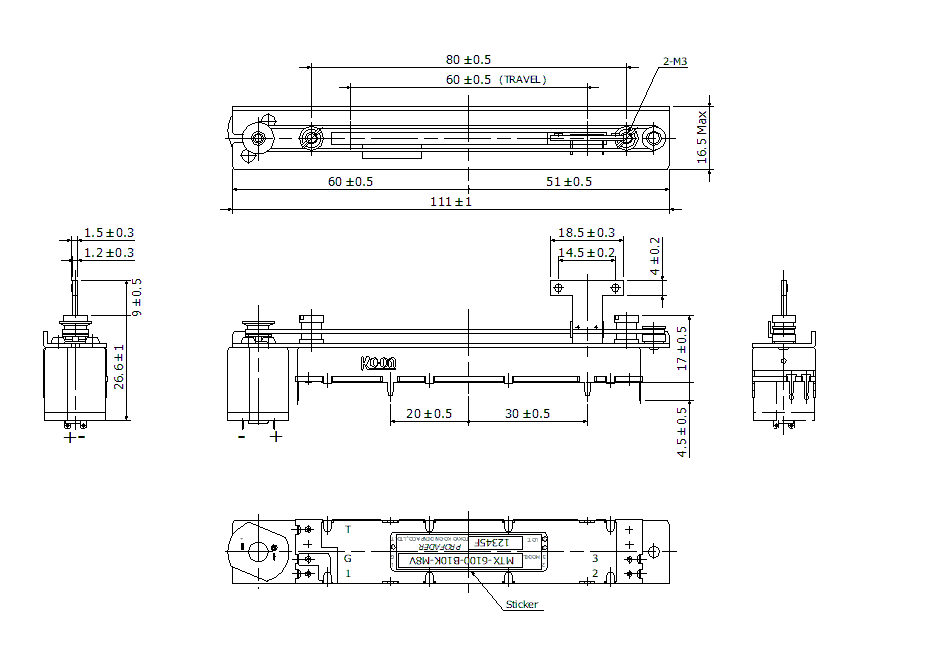

| Dimensions - MTX-6100-*-M7V |
 |
| Dimensions - Panel cut out |
 |
| Dimensions - P.C.Board Mounting hole detail (Viewed from mounting side) |
 |
| Dimensions - Terminations |
 |
| Model number | ||||||||||||
|
| *1 |
Product number (travel) |
MTX-1100 : 100mm MTX-6100 : 60mm |
| *2 | Output law | B : Linear taper + Touch sense track |
| *3 |
Total resistance |
10K : 10kohm 5K : 5kohm |
| *4 | DC Motor type | M7V : DC7V Iron cored |
| Products No. ( X: Standard model) |
Travel | Output law | Resistance | Touch sense track | Motor | Mounting Screws |
Control-bar length (Bracket height) |
|
| MTX-1100-B10K-M7V | X | 100mm | Linear | 10kohm | With | DC7V iron cored | M3 | 9mm (5mm) |
| MTX-1100-B5K-M7V | 100mm | Linear | 5kohm | With | DC7V iron cored | M3 | 9mm (5mm) | |
| MTX-6100-B10K-M7V | X | 60mm | Linear | 10kohm | With | DC7V iron cored | M3 | 9mm (5mm) |
| MTX-6100-B5K-M7V | 60mm | Linear | 5kohm | With | DC7V iron cored | M3 | 9mm (5mm) | |
| Update list | |
| 2022.11.01. | First edition |
