| Applications |
Audio equipment |
| Features |
Let's lose power switch from an operation panel.
Conductive plastic resistor element used
Rotary angle 315 degrees
With snap action switch |
| Circuit |
Ladder circuit ......................Caution!! (Curve) >>
 |
| Impedance |
10kohm, 50kohm, 100kohm |
| Operating angle |
300 degrees + 15 degrees(switch) |
| Size |
Please see datasheet |
| Order number |
Circuits
(channels) |
Operating
angle |
Impedance
|
Circut
method |
Mechanical
click |
Control-shaft
Diameter x Length |
Products No. |
| Two |
315 degrees |
50kohm |
Ladder |
Cut off position |
6mm x 20mm |
2CP2531-50K |
| Two |
315 degrees |
100kohm |
Ladder |
Cut off position |
6mm x 20mm |
2CP2531-100K |
| Two |
315 degrees |
10kohm |
Ladder |
Cut off position |
6mm x 20mm |
2CP2531-10K |
|

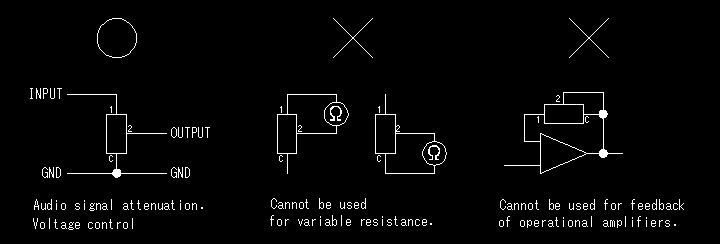

Note on using ladder
circuits |
 |
