||||| VOLUME CONTROLS |||||

Volume control box

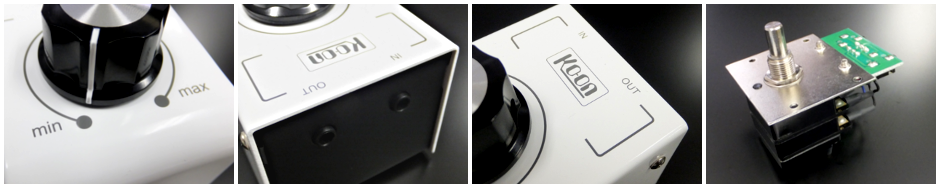

VCB25-1CH
EU-RoHS compliant products
Please see datasheet >>

Applications

This is a volume control device that you should keep close at hand.

For controlling the volume level around a computer or audio (Connected between source and amplifier).

Features

Rotation control type
Input / Output: dia.3.5 stereo jack
Select from 6 colors for knobs.

Key Parts

2CP2500-10K (Variable attenuator) >>

Max Power Rating

DC10V

Size

50W x 41.6H x 60D

Note

Please prepare your own cables.

Connection example:
[Analog output from a computer or audio device] >> [VCB25] >> [Amplifire] >> [Speakers or headphones]

If you attach a device with low impedance such as headphones to the output, you may not be able to adjust the volume.

Order Number


VCB25-1CH-S	VCB25-1CH-B	VCB25-1CH-R

VCB25-1CH-Y	VCB25-1CH-BL	VCB25-1CH-G

Volume control box

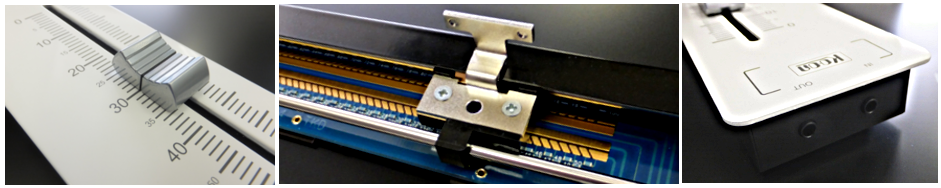

FUA-100
EU-RoHS compliant products
Please see datasheet >>

Applications	This is a volume control device that you should keep close at hand. For controlling the volume level around a computer or audio (Connected between source and amplifier).
Features	Slide control type Input / Output: dia.3.5 stereo jack Low profile body
Key Parts	FA-9101-10K (Stepped Variable attenuator) >>
Max Power Rating	DC10V
Size	60W x 23.7H x 180D
Note	Please prepare your own cables. Connection example: [Analog output from a computer or audio device] >> [FUA-100] >> [Amplifire] >> [Speakers or headphones] If you attach a device with low impedance such as headphones to the output, you may not be able to adjust the volume. Since a contact-type attenuator is used, some sliding noise may be generated during operation. Also, step noise may be generated during attenuation switching.
